USB Industrial for IC-8 I/O

U-ind

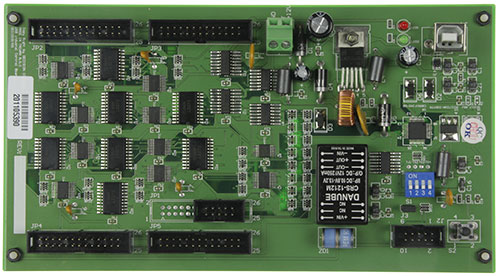

USB Industrial - only Board
Item-No.: UP-IND

Unit price €145 ,-- plus 19% VAT


Dealer Inquiry - Catalogue + Quotation


Bus: USB 2.0

Description:

  • 8 digital input/output channels
  • Each digital I/O provides voltage range from
    0V to 5V, where 0 to 2.5V is OFF and 2.8V to 5V is ON.



Allows PC to connect up to 4 DECISION INDUSTRIAL AUTOMATION CARD:

  • 8 channel relay output/Photo isolator input board, (A8RELAY/8PHOTO)
  • 8 channel SSR relay output / photo isolator input board , (A8SSR)
  • 16 channel relay output board , (A16RELAY)
  • 16 channel Photo isolator input board , (A16PHOTO)



Features:

  • Only board without case
  • HIgh Speed 8051 μC Core
  • USB 2.0 Function Controller
  • On-Chip Debug
  • Support USB ID 0~14 SET
  • POWER DC+12V 1.5A DC ADAPTOR (optional)



Operating temp. range: from 0 to 55C.

Relative humidity rage: from 0 to 90%

Size: 200 mm - 100 mm - 55 mm



EMI-Kit for Din-Rail-Module incl.

USB wiring is very sensitive to EMI errors (mainly sparking when opening contacts). The Kit (U-EMI-1) includes two Würth folded cores for the USB data cable and a Ferrite sleeve for the power supply cable.



Package includes the following items:

USB Ind Board, USB cable, Software/Manual CD

Software/Driver:

Support Windows Vista/7/8/10, Windows server 2003/2008/2012; Linux kernel version 2.4 or the later and the sample for programming.

Per shipping you receive freshly burned „Decision Computer Germany service CD“ with current drivers, manuals, installation guidances and German additional information.The extent depends on the product!
