ISA 8255 48 I/O

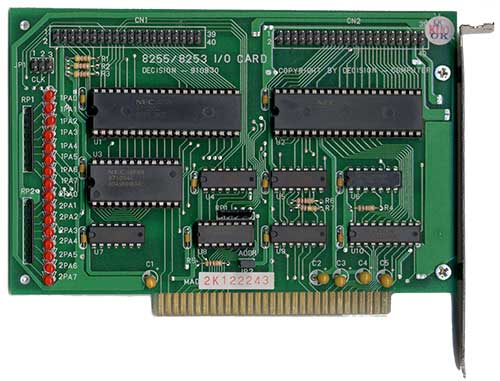

8

ISA 8255 48 I/O

Item-No.: 8255-N

Unit price € 35,50 - plus 19% VAT

Dealer Inquiry - Catalogue + Quotation

Bus: ISA 8-Bit

The 8255 I/O card is a programmable peripheral interface for PC/XT, PC/AT, 80386, 80486 or compatible. The interface card contains 8254 chip and 8255 chips, the 8254 chip provides programmable interval timer/counter function, and the 8255 chips provide programmable input/output functions.

  • 2 x 8255 (OKI-M82C55A-2) - 1 x 8254 (OKI M82C54-2)

  • 6 I/O Ports - 8 lines each

  • Programmable l/O control functions

  • Up to 48 I/O lines.  TTL - 5V

  • Three independent 16 bits counter.

  • Connection with IDC-40-pin

  • Optionally available :DB-37 adapter (ADAP37).

  • Port address selectable. H1BO + H1FO (H300 + H360 special order)

Software/Driver:

  • German bulk manual and English manual with adjusting plan, terminal diagram, data sheets and sample programs

  • Windows-98/NT/2000/XP, Linux, DOS  driver or info

  • Per shipping you receive freshly burned „Decision Computer Germany
    service CD“ with current drivers, manuals, installation guidances and
    German additional information. The extent depends on the product!

g

D-SUB Adapter 37-Pin

Item-No.: ADAP37

  • Adapter for 40-Pin IDC connector. Extends the cable connection on the plate in the computer on a DB-37 socket in the Slotblech. Set with two
    cable adapters (40-Pin IDC to DB-37) suitable for 8255N, 8255-P2 and RELOP16.
