ISA 16 Relays / 16 Optoisolator

h

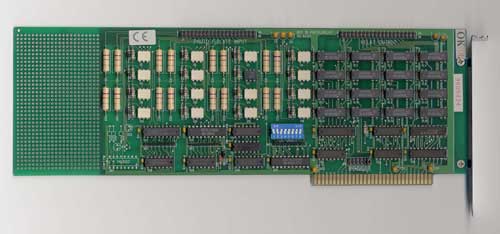

ISA 16-Relays/16-Opto

Item-No.: RELOP-16

Unit price € 110,-- - plus 19% VAT

Small stock!

Dealer Inquiry - Catalogue + Quotation


The 16 channels relay output / photo isolator input adapter provides relay output functions. The relay output part provides 16 relays to drive 16 different output channels. Each relay channel can be used to control ON/ OFF of external devices, to drive external high power relays, to activate alarms... etc.

The photo isolator input part provides 16 photo couple digital input channels, which allow the input signals to be completely floated and prevent the ground loop.



Bus: ISA 8-Bit

Function:

  • Support 16 relay output channels and 16 photo couple input channels

  • Max contact rating for relay: 150V / DC 1AMP.

  • Response time for relay: 1 ms minimum.

  • Contact resistance for relay: 0.2-OHM maximum.

  • 16 Optokoppler Eingänge - Isolationsspannung 500 V Spitze

  • High Pegel 3-45V - Low Pegel 0-2V

  • Support several operating modes which are Programmable

  • Sixteen LED indicate when I/O is operating.

  • Port address selectable (100H bis 3F8H)


Software/Driver:

English manual with adjusting plan, terminal diagram, data sheets and sample programs
Windows-98/NT/2000/XP,Vista, Linux driver or info

The package contains:
RELOP-16 Board, flat cable with 37 pins connector. Software-CD, Manual
